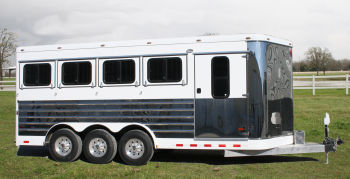

SunLite 725 Aluminum Horse Trailer
 The SunLite 725 horse trailer has a painted aluminum exterior, and is a slant-load horse trailer. The SunLite 725 is perfect for hauling horses to the rodeo, shows, or any where else you need to go. This trailer comes with drop-down feed doors on the head side and fully enclosed with windows on the rump side.
This trailer is also available with 36" Stalls.
Standard Aluminum Horse Trailer Features
- 6' 9" Wide, 7" Tall
- Graphics Package
- White, Black, or Red Exterior Aluminum Skin
- Outside Tie Ring per Stall
- Aluminum Side Access Door With Cam Latch
- Drop Down Feed Doors with Windows on Head Wall
- Enclosed with Windows on Butt Wall
- Independent Aluminum Rear Doors
- White Interior Skin
- Fully Lined and Insulated
- 36" SunCoated™ Panels on Lower Half of Slant Wall
- 36" SunCoated™ Panels on Head Wall
- 48" SunCoated™ Panels on Butt Wall
|
- 48" SunCoated™ on Rear Doors
- 42" Stalls
- Dome Light and Horse Vent per Stall
- 2 Head Ties per Stall
- Padded Aluminum Body Dividers with Rotary Latches
- Padded Aluminum Breast Bar in Front Stall
- Telescoping Rear Divider
- Padded Aluminum Butt Bar in Rear Stall
- Floor Mats in Horse Area
- 51" Rear Tack with Dome Light and 4 Bridle Hangers
- Sundowner Stacked Saddle Rack (1 per Stall - 4 Max.)
- LED Tail Lights and Clearance Lights
- 2 Load Lights at Rear
- Spare Tire
|
Tack Storage Room
- 34" Short Wall
- 82" Long Wall
- White Skin on Both Sides of Slant Wall
- Aluminum Tack Storage Room Door with Vertical Window
- Dome Light Inside and Out
|
- Saddle Rack Location
- 6 Hanger Bridle Bar
- Blanket and Clothes Bar
- Brush Tray
- Carpet on Floor
|
Popular Options
- Extra Footage in Tack Storage Room
- Aluminum Face Guards
- Mangers
- Hay Rack and Ladder
- A\C in Tack Storage Room
|
- Mid-Tack
- Full Single Swinging Rear Door
- Ramps
- Full Stud Dividers
|
Specifications
| # OF HORSES |
FLOOR LENGTH |
TOTAL AXLE CAPACITY |
TIRES |
| 2 |
14' 1" |
6 hole 15" 2-3500# |
225-R15 |
| 3 |
17' 7" |
6 hole 15" 2-5200# |
225-R15 |
| 4 |
21' 1" |
8 hole 16" 2-7000# |
235-85R16 |

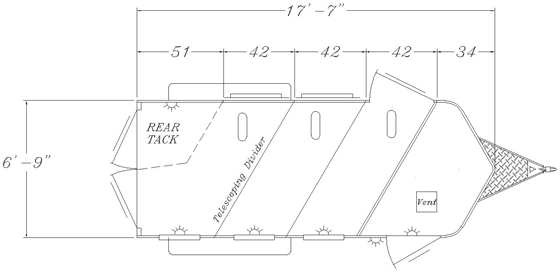

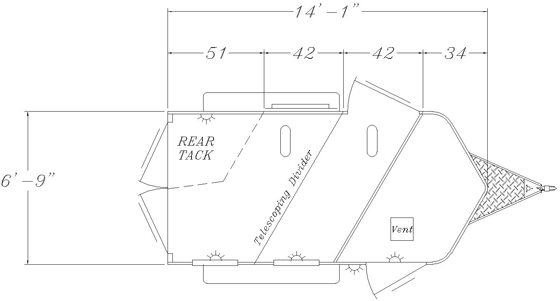

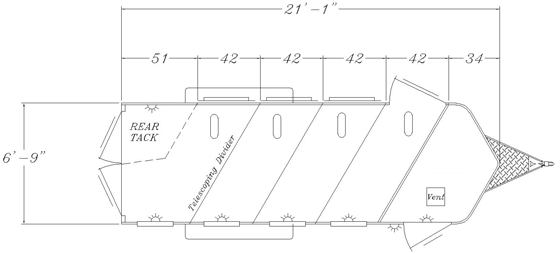

Floor Plans
| Sundowner Trailers, Inc. reserves the right to change or alter these specifications without notice. Some trailers shown with optional equipment. All dimensions are approximate. See your dealer for warranty details. |
|
