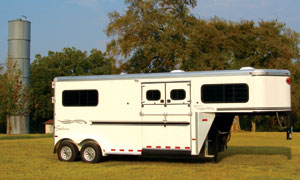

SunLite 777 SR Aluminum Horse Trailer
 The SunLite 777SR gooseneck horse trailer has a painted aluminum exterior, and is a straight load aluminum horse trailer. This is our most popular straight load trailer. It comes with a rear and side load ramp and walk through stalls with a side access door.
This horse trailer is available with or without a tack storage room.
Standard Gooseneck Aluminum Horse Trailer Features
- 6'9" Wide, 7'6" Tall
- 2 5/16" Hitch
- Torsion Ride Axles with Electric Brakes
- Drop Leg Jack (Single Speed)
- SunCoated™ Neck and Breastplate
- Extruded Aluminum Floor
- Aluminum Tear Drop Fenders
- Aluminum Low Profile Roof with 30° Nose
- 19" x 53" Windows in Nose
- Stainless Hinges on Tack Storage Room and Side Access Doors
- Sundowner Designed Aluminum Rear Door Hinges
- Wheels with Chrome Plated ABS Lug Covers
- Spare Tire
- White, Black, or Red Exterior Aluminum Skin
- Graphics Package
- Trailer Breakaway Safety with Battery
- LED Brake/Tail and Clearance Lights
- DOT Approved Running and Tag Lights
- 2 Load Lights at Rear
|
- 14 Gauge Wiring in Conduit with Junction Boxes
- 10 Gauge Wiring for Brakes and Ground
- Side Access Door
- Rear Ramp as Door with Wrap Around Double Lined Tail Curtains
- 39" Stalls
- Aluminum Solid Head and Shoulder Divider
- Aluminum Body Divider with Pads
- Aluminum Removable Post
- Fully Enclosed with Two 19" x 53" Windows in Horse Area
- Aluminum Breast Bar with Pads
- Aluminum Butt Bars with Pads
- Encased and Recessed Bi-directional Roof Vent per Stall
- 2 Head Ties per Stall
- Outside Tie Ring per Stall
- Floor Mats in Horse Area
- Side walls have 52" L&I Suncoated kick panels w/Pads beside horse
- No Inside Fender Wells
- SunCoated™ in Horse Area on Lower Portions of Doors
- 2 Dome Lights in Horse Area
|
Tack Storage Room
- 50" Tack Storage Room
- Carpet on Floor, Breastplate, and Gooseneck Floor
- Blanket Bar
- 6-Hanger Bridle Bar
|
- Brush Tray
- Camper Vent
- Tack Storage Room Door with Vertical Window
- Interior and Exterior Lights
- White Skin Lower Half of Straight Wall
|
Popular Options
- Tack Storage Room
- Additional Dome Light(s)
- Adjustable Saddle Rack
- 14" x 34" Window in Tack Storage Room Wall
- Wrap Around Hinges on Rear Doors
- Lower Partition on Divider
- Full Stud Dividers
|
- A\C in the Tack Storage Room
- Hanging Mat on Divider
- Center Access Door to Tack Storage Room
- Lined and Insulated Tack Storage Room Walls
- Line and Insulated Roof
- Hay Rack and Ladder
- Double Rear Doors in Lieu of Ramp
- Stainless Steel Nose
- Corrugated Stainless Sides
|
Specifications
| # OF HORSES |
FLOOR LENGTH |
FULL LENGTH |
TOTAL AXLE CAPACITY |
TIRES |
| 2 |
14' 1" |
22' 1" |
6 hole 15" 2-3500# |
225-R15 |
| 2 (with dress) |
18' 3" |
26' 3" |
6 hole 15" 2-5200# |
225-R15 |

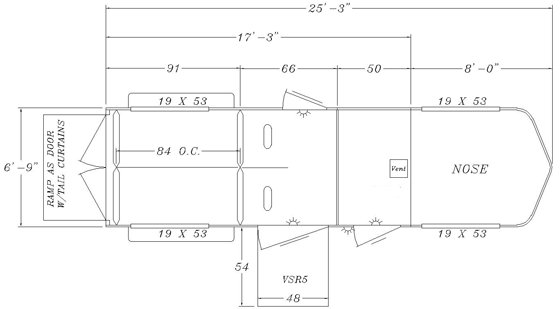

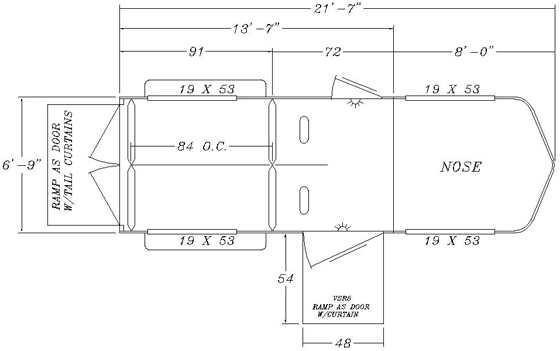

Floor Plans
| Sundowner Trailers, Inc. reserves the right to change or alter these specifications without notice. Some trailers shown with optional equipment. All dimensions are approximate. See your dealer for warranty details. |
|
