SunLite 727 Aluminum Horse Trailer
 The SunLite 727 gooseneck horse trailer has a painted aluminum exterior and is a slant-load horse trailer. This is one of our most popular trailers and it is perfect for hauling horses to the rodeo, shows, or any where else you need to go.
The SunLite 727 comes with drop-down feed doors on the head side and is fully enclosed with windows on the rump side. This aluminum horse trailer has everything the modern horse person could want or need and is the best value for their money with all the quality of a Sundowner Trailer.
The SunLite 727 gooseneck horse trailer has the features and options that horse people like built in it standard, and can be further customized to fit individual needs, taste and style.
Standard Gooseneck Horse Trailer Features
- 6' 9" Wide, 7' Tall
- 2 5/16" Hitch
- Torsion Ride Axles with Electric Brakes
- Drop Leg Jack (2 spd if standard floor is 20' ft or more)
- SunCoated™ Neck and Breastplate
- Extruded Aluminum Floor
- Aluminum Teardrop Fenders
- Aluminum Low Profile Roof with 30° Nose
- 19" x 53" Windows in Nose
- Stainless Hinges on Tack Storage Room and Head Doors
- Sundowner Designed Aluminum Rear Door Hinges
- Wheels with Chrome Plated ABS Lug Covers
- Spare Tire
- White, Black, or Red Exterior Aluminum Skin
- Graphics Packages
- Rear Rubber Bumper
- Trailer Breakaway Safety with Battery
- LED Brake/Tail and Clearance Lights
- DOT Approved Running and Tag Lights
- 42" Stalls
|
- 14 Gauge Wiring in Conduit with Junction Boxes
- 10 Gauge Wiring for Brakes and Ground
- Side Access Door with Full Height Aluminum Cam Latch
- Rear Doors with Windows with Full Height Aluminum Cam Latch
- Aluminum Solid Head and Shoulder Dividers
- Divider Pads
- Drop Down Head Doors with Windows
- Enclosed with Windows on Butt Wall
- Aluminum Breast Bar with Pads
- Aluminum Butt Bar with Pad
- Encased and Recessed Bi-directional Roof Vent per Stall
- 2 Head Ties per Stall
- Outside Tie Ring per Stall
- Floor Mats in Horse Area
- White Interior Aluminum Skin
- No Inside Fender Wells (6'9" wide only)
- SunCoated™ Kick Panels in Horse Area on Lower Portions of Walls and Doors
- Dome Light in Horse Area
- 2 Load Lights at Rear
|
Rear Tack
- Collapsible/Removable Rear Tack
- Swing Out and Adjustable Saddle Rack
|
- Briddle Bar with 4 Hangers
- Dome Light
|
Tack Storage Room
- 43" short wall, 91" long wall
- Carpet on Floor, Breastplate, and Gooseneck Floor
- Blanket Bar
- 6-Hanger Bridle Hanger
|
- Brush Tray
- Camper Vent
- Tack Storage Room Door with Vertical Window
- Interior and Exterior Lights
- Lower half of slant wall lined and insulated
|
Popular Options
- Drop Down Feed Door in the Side Access Door
- Drop Down Feed Doors on the Rumpside
- Corrugated Stainless Steel Sides
- Stainless Steel Nose Wrap
- 6" to Height
- Additional Length to Tack Storage Room
- 2-Speed Jack
- Additional Dome Light(s)
- Additional Clearance Light(s)
- Stud Divider
|
- Lower Partition on Divider
- Hanging Mat on Divider
- Center Access Door
- Additional Windows in Tack Storage Room/Mid-Tack
- Lined and Insulated Tack Storage Room Walls
- Lined and Insulated Roof
- Ramp Behind Rear Doors
- Screen Door
- Mid-Tack
- Hay Rack and Ladder
- Face Guards
- Painted Top Rail and Rear Posts
|
Specifications
| # OF HORSES |
FLOOR LENGTH |
FULL LENGTH |
TOTAL AXLE CAPACITY |
TIRES |
| 2 |
15' |
23' |
6 hole 15" 2-3500# |
225-R15 |
| 3 |
18'6" |
26'6" |
6 hole 15" 2-5200# |
225-R15 |
| 4 |
22' |
30' |
8 hole 16" 2-7000# |
235-85R16 |

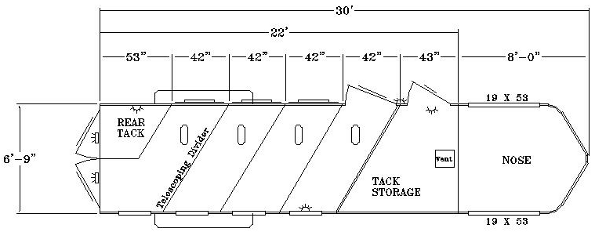

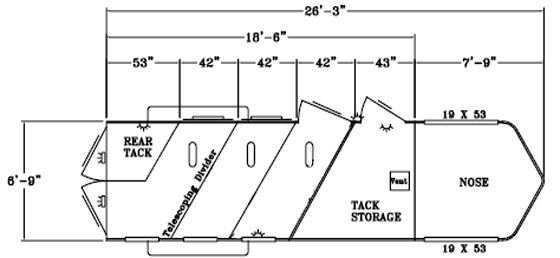

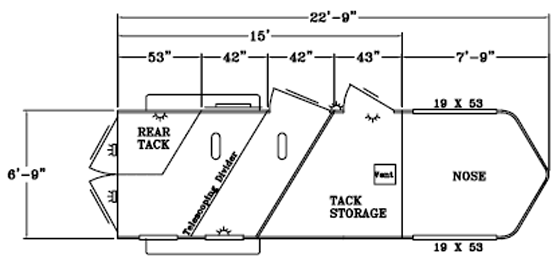

Floor Plans
| Sundowner Trailers, Inc. reserves the right to change or alter these specifications without notice. Some trailers shown with optional equipment. All dimensions are approximate. See your dealer for warranty details. |
|
